What is SCADA (Supervisory Control and Data Acquisition)

SCADA stands for Supervisory Control and Data Acquisition. It is a system used in industry and infrastructure to control and monitor various processes and devices remotely. SCADA systems can be used in a variety of applications, including power plants, water and wastewater treatment plants, oil and gas pipelines, transportation systems, and manufacturing facilities.

A typical SCADA system includes a central computer system (called a master station or host computer) that communicates with a network of remote terminal units (RTUs) that are connected to the field devices (such as sensors, valves, pumps, etc.). The RTUs collect data from the field devices and send it to the central computer, where it can be analyzed, processed, and displayed on a graphical user interface (GUI) for operators to monitor and control the system.

SCADA systems are essential in modern industry and infrastructure because they allow operators to monitor and control processes and devices from a central location, reducing the need for manual inspections and interventions, improving efficiency, and increasing the overall safety and reliability of the system.

A typical utility SCADA (Supervisory Control and Data Acquisition) system consists of the following major components:

1. Remote Terminal Units (RTUs) and/or Intelligent Electronic Devices (IEDs): These are field devices that are installed in the electrical infrastructure, such as transformers, switchgear, or other equipment. RTUs and IEDs collect data on the status of the equipment and communicate that data to the SCADA system.
2. Master Station: The Master Station is the central computer system that receives data from the RTUs or IEDs and provides overall control of the SCADA system. The Master processes the incoming data, generates alarms and notifications, and sends commands back to the RTUs or IEDs to control the equipment through automated processes or at the direction of system operators.
3. Communication Infrastructure: The communication infrastructure provides the network connections between the RTUs or IEDs and the Master. This can be achieved using wired or wireless communication technologies, such as radio, fiber optic, cellular networks or satellite.

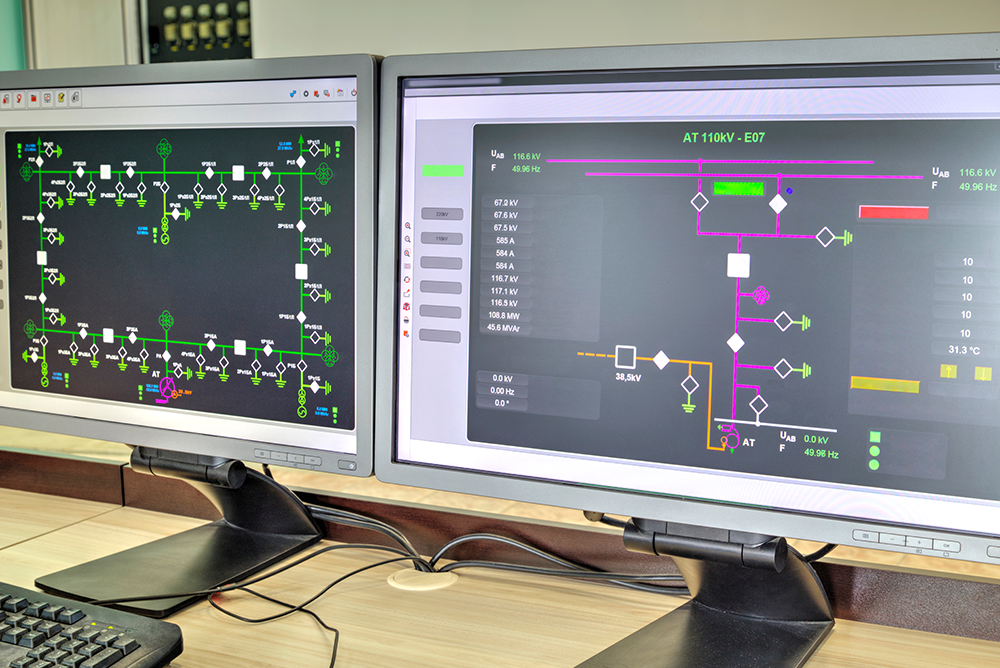

4. Human-Machine Interface (HMI): The HMI is the graphical user interface that allows operators to monitor and control the SCADA system. The HMI provides a real-time view of the electrical infrastructure, displays alarms and notifications, and allows operators to issue commands to the equipment.
5. Historian: The historian is a database that stores all of the data collected by the SCADA system. Historians provide a historical record of system performance and allows for analysis of trends and events over time.
6. Alarm Management System: The alarm management system is a software tool that processes alarms generated by the SCADA system. The alarm management system filters, prioritizes, and presents alarms to the operator, ensuring that critical alarms are addressed promptly.

A utility can perform a wide range of functions with a SCADA (Supervisory Control and Data Acquisition) system. Some of the typical activities that utilities perform using SCADA systems include:

• Real-time monitoring of electrical infrastructure: SCADA systems provide utilities with real-time data on the performance of their electrical infrastructure. This includes information on the status of equipment, such as transformers, breakers, and switches, as well as data on power flows, voltage levels, and other key parameters.
• Remote control of equipment: SCADA systems enable utilities to remotely control equipment, such as switches, transformers, and capacitor banks, from a central location. This allows utilities to optimize the performance of their infrastructure, such as balancing power flows, reducing losses, and improving the quality of power.
• Fault detection and outage management: SCADA systems can detect faults in the electrical network and generate alarms or notifications to alert operators. This allows utilities to quickly identify and respond to issues, reducing downtime and improving the reliability of the system.
• Data collection and analysis: SCADA systems collect large amounts of data on the performance of the electrical infrastructure. Utilities can use this data to analyze trends and patterns, identify potential problems, and plan for future upgrades and expansions.
• Energy management: SCADA systems can help utilities manage energy more efficiently by monitoring power usage, optimizing power flows, and adjusting voltage levels. This can reduce energy costs, improve the quality of power, and extend the lifespan of equipment.

SCADA systems can offer many benefits to the utility.  Among these are:

• Secure Remote Monitoring and Control: SCADA allows utilities to remotely monitor and control their electrical infrastructure. This means that they can detect and respond to problems quickly, which helps prevent power outages and other issues.
• Improved Reliability: By providing real-time data on the condition of their electrical systems, SCADA enables utilities to identify potential problems before they escalate into larger issues. This improves the reliability of their infrastructure and reduces downtime.
• Increased Efficiency: SCADA systems can automate many of the tasks involved in managing an electrical network, such as monitoring power usage, adjusting voltage levels, and managing power flows. This can reduce the need for manual intervention and improve the overall efficiency of the system.
• Enhanced Safety: SCADA systems can help improve the safety of electrical infrastructure by providing early warning of potential problems, such as equipment failures or line damage. This enables utilities to take action to prevent accidents and minimize the impact of any incidents that do occur.
• Better Data Management: SCADA systems collect and store large amounts of data on the performance of electrical infrastructure. This data can be used to optimize operations, identify trends, and plan for future upgrades and expansions.

Overall, SCADA systems provide utilities with a powerful tool for managing their electrical infrastructure, improving reliability, efficiency, and safety of their operations.
